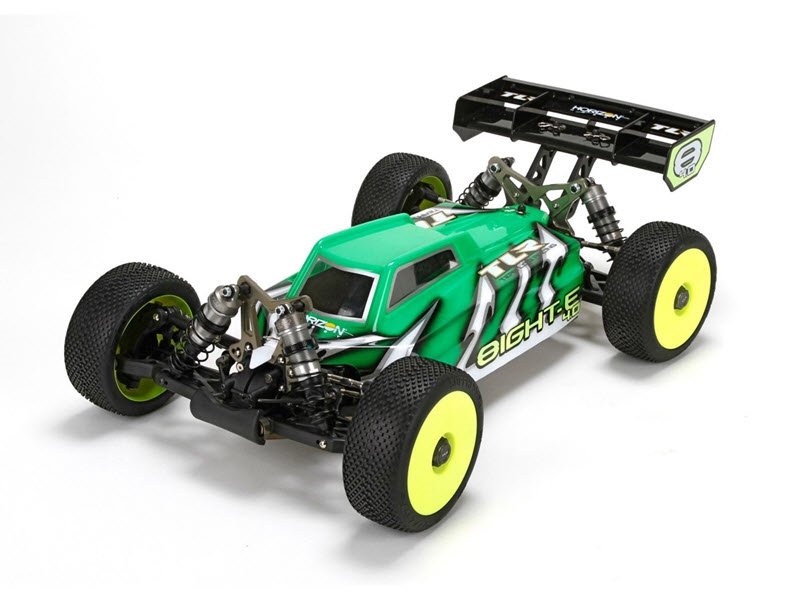

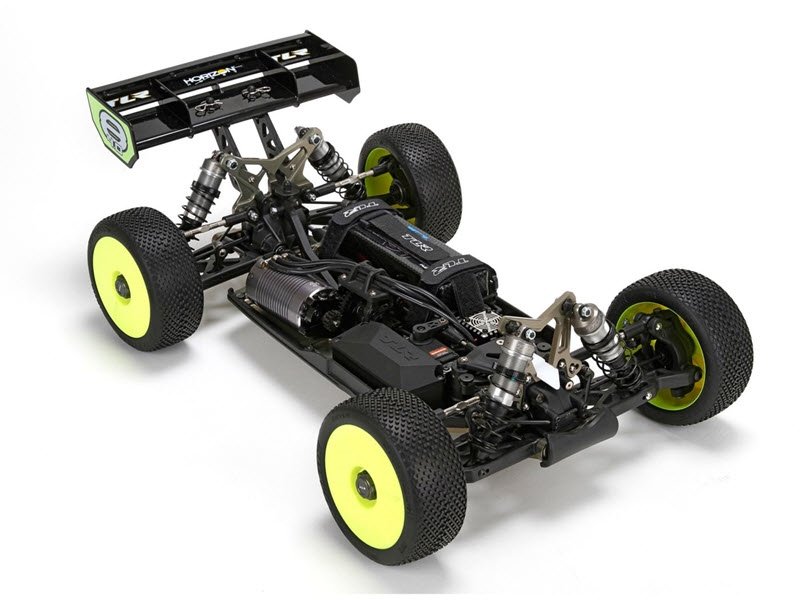

The 8IGHT-E 3.0 buggy introduced a completely redesigned chassis specifically engineered for electric power. The 8IGHT-E 4.0 buggy builds on this proven platform with updates to the suspension geometry and drivetrain layout that make it easier to drive and even tougher to beat.

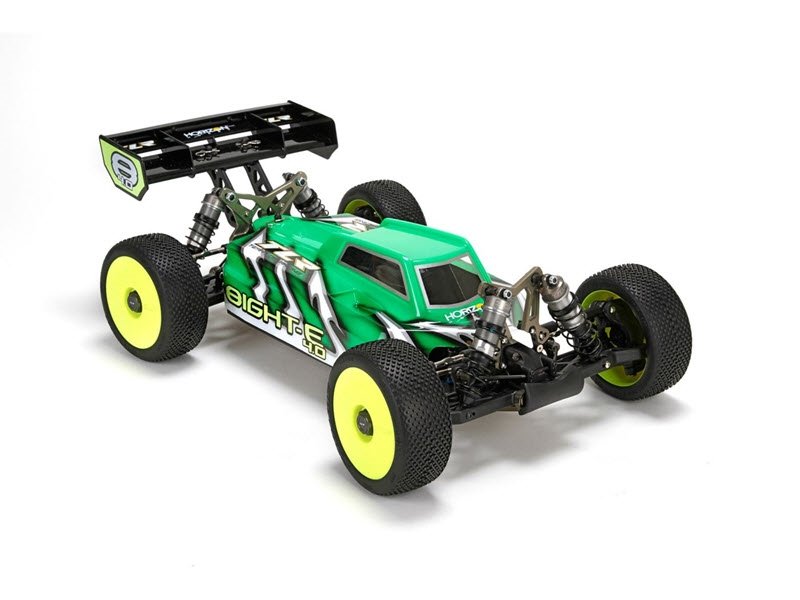

NOTE: Wheels, tires, painted body and electronics shown in photos are shown for illustrative purposes only and are not included. See needed to complete list below for a full list of items required to complete the model.
FEATURES
REVISED SUSPENSION GEOMETRY
New suspension geometry makes it easier for drivers of all experience levels to turn faster lap times with fewer mistakes, particularly when harnessing the power of a high-output brushless motor system.

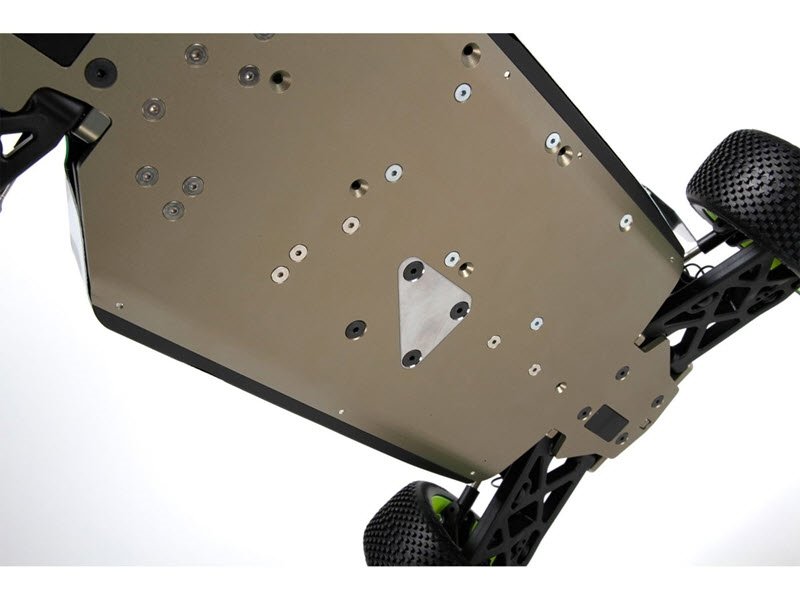

VARIABLE MOTOR AND CENTER DIFFERENTIAL ANGLES
Two different center plates for the bottom of the chassis are included. The stock center plate puts the motor and differential directly in line with the chassis. The optional center plate rotates the motor and differential 4.4 degrees, creating equal angles between the front-center and rear-center dog bones. This provides more balanced power to the front and rear of the car under acceleration.

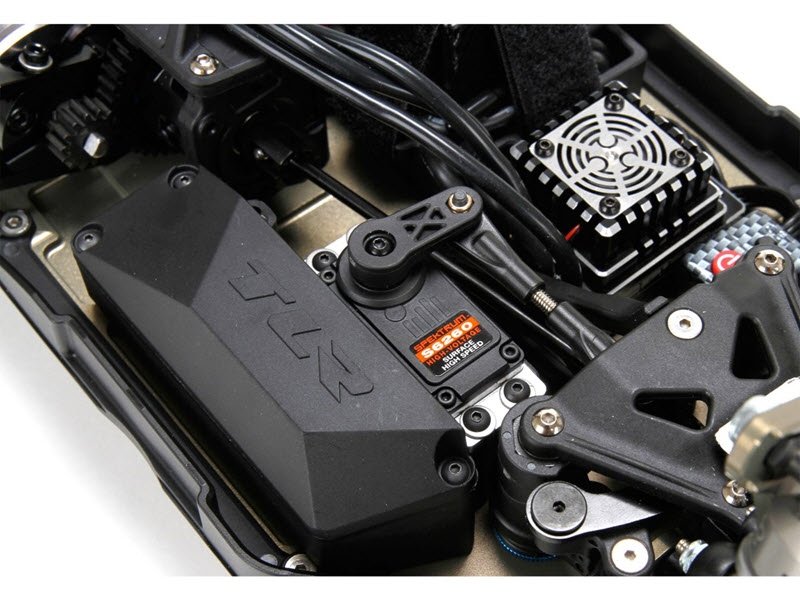

TWO BATTERY AND ESC LOCATIONS
The chassis offers two locations for the battery and ESC. With the battery in the forward location and the ESC in the rear of the car, the vehicle has more forward weight bias which improves stability on high-speed tracks. Moving the ESC forward and the battery to the rear mounting location provides a rear weight bias that increases corner speed and makes handling more agile.
LARGE BEARING SPINDLES AND HUBS
Front spindles and rear hubs have been revised to accept a larger 8 x 16 x 5 outer bearing for increased durability.
ADJUSTABLE CASTER BLOCKS
The adjustable, 15-degree caster blocks make it possible to tune dog bone plunge by changing the height of the spindle.
NEW BLEEDER SHOCK CAPS AND SEALS
The new bleeder shock caps and internal seals allow for easier rebuilds while using an emulsion shock setup. New bushings that press into the shock cap further improve durability.
DRIVESHAFT and DOG BONE BOOTS
Molded rubber boots on the CVAs and center drivetrain dog bones increase U- joint life by holding lubrication in and keeping dirt out.

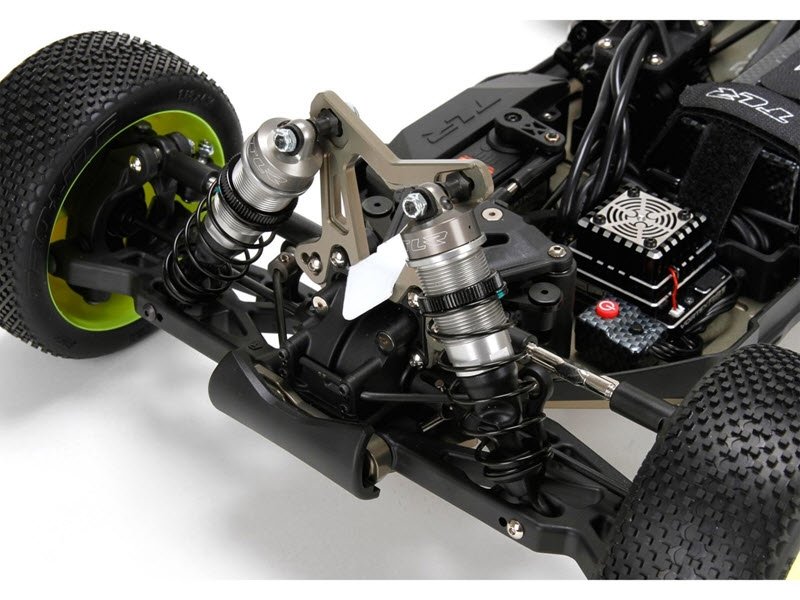

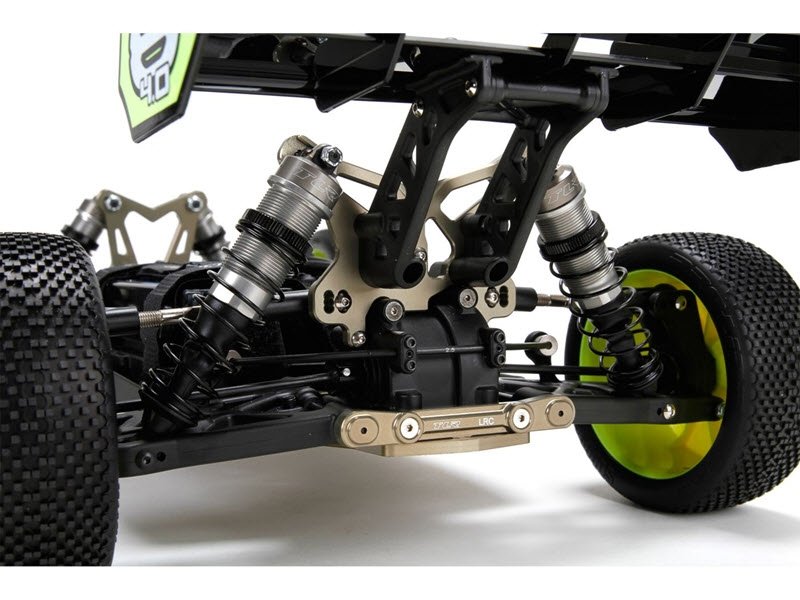

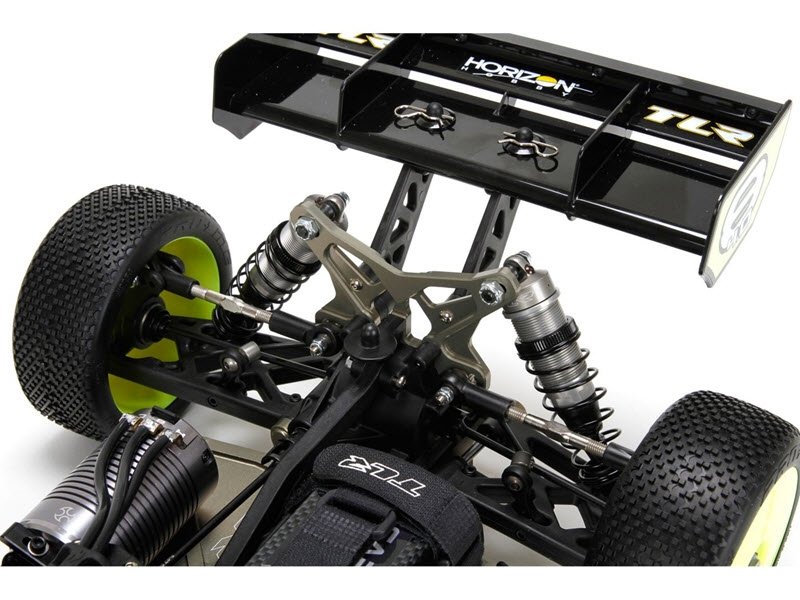

REDESIGNED SHOCK TOWERS
The machined aluminum shock towers have new camber link and shock location holes that give racers more tuning options for changing track conditions.

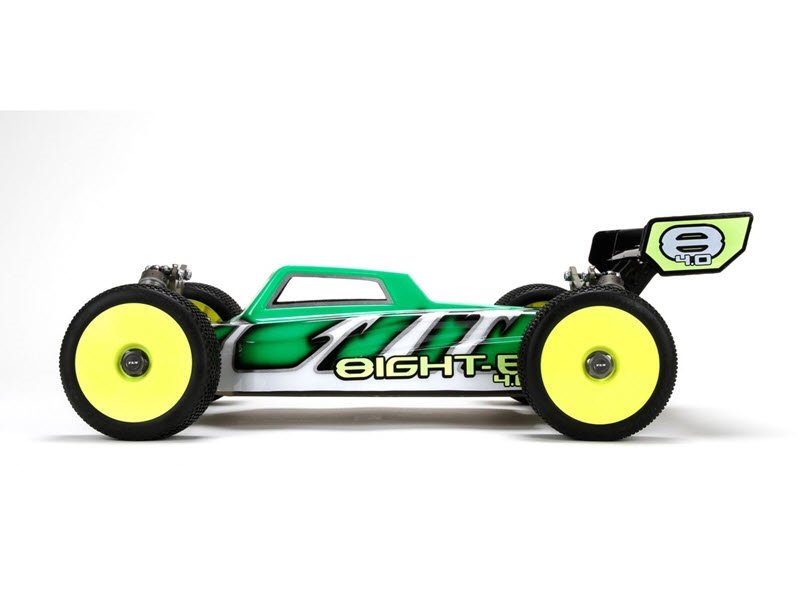

CAB-FORWARD BODY
The cab-forward body moves aerodynamic pressure further forward on the car, which improves steering.Type: Electric BuggySpecifications - Scale: 1/8
- Length: 19.6 in (497mm)
- Width: 12.1 in (308mm)
- Height: 7.1 in (180mm)
- Ground Clearance: 2.4 in (60mm)
- Wheelbase: 12.7"-12.9" (323-327mm)
- Weight: Varies on equipment used
- Chassis: 4mm Plate, 7075-T6 Alumimum, Hard Anodized
- Suspension: 4 Wheel Independent
- Drivetrain: 4WD, Shaft Driven
- Tire Type: Not included
- Motor or Engine: 690 size not included
- Speed Control: not included
- Radio: 2 channel, not included
- Servos: not included
- Batteries: not included
- Charger: not included
- Gear Pitch: MOD 1
- Kit/RTR: Kit
- Shock Type: Aluminum Oil Filled
- Body: 8IGHT-E 4.0 Cab Forward, Clear, Pre-Trimmed
- Ball Bearings: Yes
- Experience Level: Advanced
- Recommended Environment: Outdoor
- Assembly Time: 5-7 Hours
- Is Assembly Required: Yes
Needed To Complete:
- 2-Channel Radio System
- (1) Steering Servo
- 1/8 Scale Electronic Speed Control
- 1/8 Scale Brushless Motor
- Mod1 Pitch Pinion Gear
- 4S LiPo Battery Pack (or two 2S LiPos)
- Compatible Battery Charger
- Tires, Inserts & CA Tire Glue
- Polycarbonate Paint (for body)
|
|
|
